Volvo HU-650 vs HU-850: Classic P2 Audio Units Head-to-Head
The HU-650 and HU-850 are the two primary OEM double-DIN factory head units installed in Volvo P2 platform vehicles (2005–2009 S60, V70, XC70, and S80). The HU-850 was Volvo’s flagship ‘Premium Sound’ system, featuring an integrated 6-disc in-dash CD changer, Dolby Pro Logic II surround sound processing, a dedicated center dashboard speaker channel, and requiring an external under-seat amplifier (PA-200 or PA-300). The HU-650 was the standard ‘High Performance’ unit, featuring a single-disc CD player and an internal 4x25W amplifier.
6-Disc In-Dash Changer + Dolby Pro Logic II
Single-Disc CD + Internal 4x25W Amp
HU-850 Powers Center Dashboard Speaker
HU-850 Requires External PA-200/PA-300 Amp
The Golden Era of Swedish Car Audio: Volvo P2 Platform
Between 2001 and 2009, Volvo produced what many automotive journalists and acoustic engineers regard as the golden era of factory car audio on the celebrated P2 platform (comprising the S60 sport sedan, V70 estate, XC70 rugged wagon, and first-generation S80). In an era when most competitor luxury sedans offered harsh, tinny sound systems, Volvo partnered with acoustic legends including Dynaudio and Dolby Laboratories to engineer factory audio that sounded like a live recording studio.
Following the 2005 mid-cycle facelift, Volvo introduced two double-DIN head units that dominated production: the HU-650 and the HU-850. While both units share identical dashboard mounting dimensions and the same curved gray or black plastic faceplate, their internal engineering, audio decoding, and amplification requirements could not be more different.
Select your factory Volvo head unit to reveal amplifier requirements, hidden service menu key sequences, and modern Bluetooth adapter compatibility.
External PA-200 / PA-300 Required
Dolby Pro Logic II + Center Channel
GROM-BT3 / Yatour 8-Pin DIN Adapter
Volvo HU-850: The Flagship Audiophile Masterpiece
The HU-850 was the crown jewel of Volvo’s factory audio program. It was standard equipment on high-spec models like the legendary 300-horsepower Volvo V70 R and S60 R, and an expensive standalone option on Inscription and Premium packages.
Key Architectural Features of the HU-850:
- Integrated 6-Disc CD Changer: An internal motorized magazine holds up to 6 audio discs simultaneously without requiring an external trunk changer.
- Dolby Pro Logic II Surround Sound: The HU-850 features dedicated hardware decoding chips from Dolby Laboratories. Drivers can select between OFF (pure 2-channel stereo), 3-CH (center-weighted acoustic stage), and Surround (full immersive 5-channel envelopment).
- Dedicated Center Speaker: The dashboard includes a recessed center speaker grille housing a high-performance coaxial speaker that anchors vocal imaging squarely on the windshield.
- External Amplification Mandatory: The HU-850 contains NO internal power amplifiers for the door speakers. It must be paired with an under-seat external amplifier (the 200-watt PA-200 or 300-watt PA-300) connected via a thick round 6-pin DIN cable.
Volvo HU-650: The Dependable High Performance Workhorse
The HU-650 served as the standard head unit on most base and mid-tier S60, V70, and XC70 models between 2005 and 2009. While it lacks the glamorous Dolby badging and motorized multi-disc changer of its bigger sibling, it possesses several practical advantages:
- Single-Disc Simplicity: The HU-650 utilizes a simple, robust single-disc optical transport that is far less prone to the mechanical gear jamming (‘CD Error 3’) that plagues aging HU-850 changers.
- Internal 4x25W Amplifier: The HU-650 has its own internal amplifier chips. It can directly power four door speakers without needing an external amplifier box under the passenger seat, though an external PA-200 can be added via the rear 6-pin DIN pre-out port for increased volume and punch.
- Standard 2-Channel Stereo: Operates strictly in standard stereo staging; it cannot drive a center dashboard speaker.

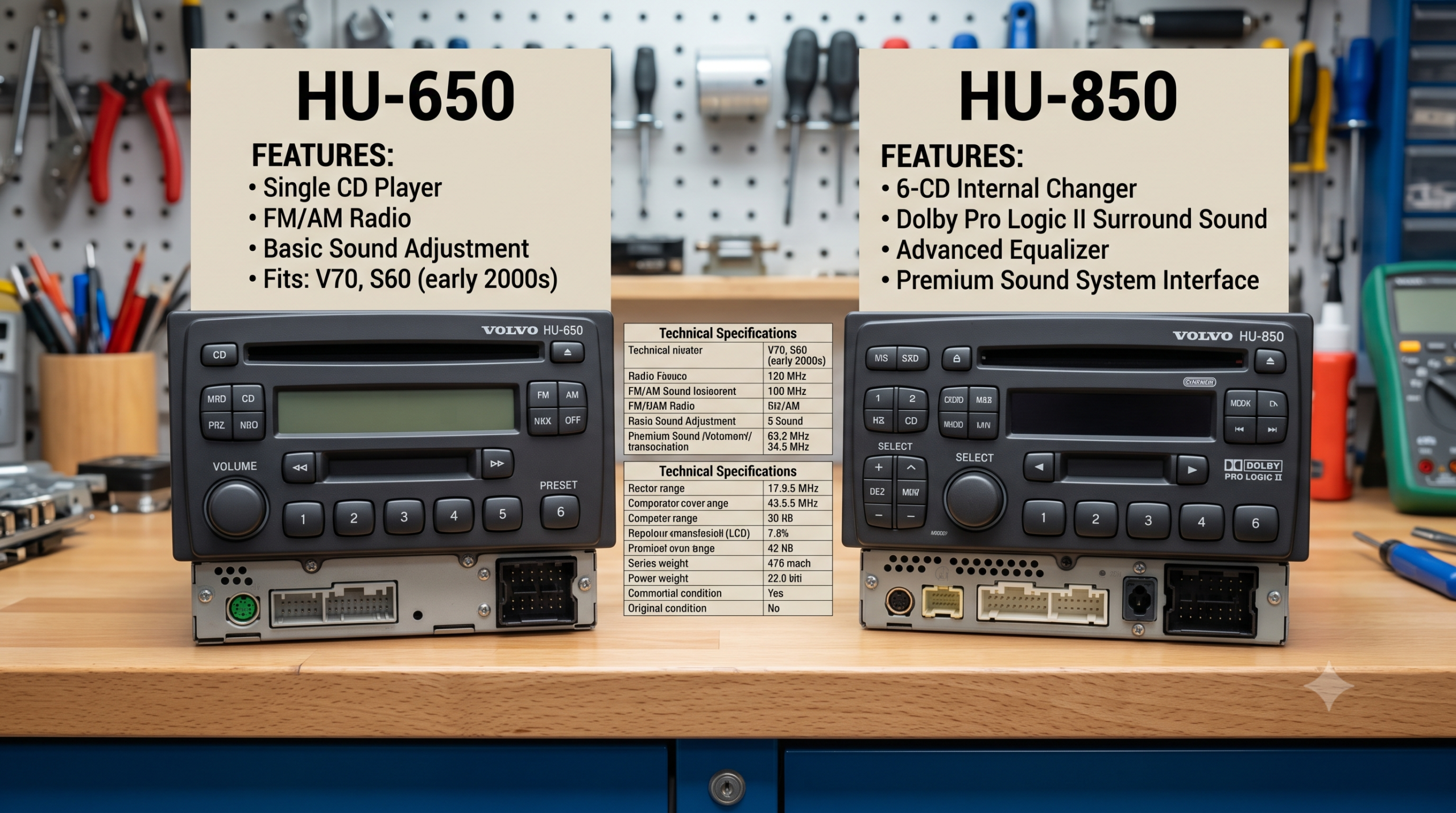

Technical Specification Matrix: HU-650 vs HU-850
| Hardware Specification | Volvo HU-650 | Volvo HU-850 |
|---|---|---|
| CD Mechanism Type | Single-Disc front slot loader | Built-in 6-Disc motorized internal changer |
| Surround Sound Processing | None (Standard Left/Right Stereo) | Hardware Dolby Pro Logic II (Surround / 3-Channel) |
| Center Speaker Support | No center speaker output | Dedicated amplified center dash channel |
| Amplification Setup | Internal 4x25W amplifier (External optional) | No internal speaker amp (Requires external PA-200/PA-300) |
| Hidden EQ Access | Hold source knob while pressing power ON | Hold [1-20/DISC] knob while pressing power ON |
| Common Failure Mode | CD drive reading error (‘CD Error’) | Internal gear jamming (‘CD Error 3’ / mechanism jam) |
Modern Upgrades: Adding Bluetooth 5.0 to Your Classic Volvo
The biggest modern limitation of both the HU-650 and HU-850 is the complete absence of factory Bluetooth audio streaming. Fortunately, you do not need to butcher your classic dashboard with an ugly aftermarket double-DIN touchscreen that ruins Volvo’s refined interior aesthetic.
Both units feature an 8-pin round DIN CD-changer input on the rear metal chassis. By installing an interface module like the GROM-BT3, Yatour, or USA Spec BT45-VOL, you gain:
- CD-Quality Bluetooth Streaming: Streams Spotify, Apple Music, and podcasts directly into the factory amplifier with zero analog noise.
- Steering Wheel Controls: The factory steering wheel track skip arrows and volume buttons continue to function flawlessly.
- Hands-Free Calling: Includes a discreet microphone routed to the driver’s sun visor or A-pillar for hands-free speakerphone calling.
Summary Verdict: Which P2 Head Unit Reigns Supreme?
If pristine acoustic fidelity, room-filling Dolby Pro Logic II surround staging, and concert hall realism are your goals, the Volvo HU-850 paired with a PA-300 amplifier remains an untouchable benchmark in automotive audio. If you prioritize long-term mechanical reliability and want a simple, un-jammed disc player paired with an easy modern Bluetooth retrofit, the HU-650 provides decades of reliable, warm Swedish sound.
Circuit Architecture & Discrete Amplifier Hardware: PA-200 vs PA-300
To audiophiles and classic Volvo enthusiasts who cherish the legendary P2 platform (V70, XC70, S60, and S80 built from 2001 to 2007), the battle between the HU-650 and HU-850 head units is legendary. Manufactured by Mitsubishi Electric for Volvo Car Corporation, these double-DIN head units represent the zenith of pre-CAN-bus automotive acoustic engineering.
The fundamental hardware divergence centers upon amplification circuitry:
- HU-650 (Standard Mid-Tier Unit): Contains an integrated 4x25W RMS internal MOSFET pre-amp. While it can drive the four standard door speakers directly from its rear harness, it lacks the dynamic headroom, transient response, and bass dampening control required for high-volume listening without thermal clipping.
- HU-850 (Audiophile Flagship Unit): Contains NO internal high-level speaker amplification for the main channels. Instead, it utilizes an analog pre-out DIN 6-pin shielded cable that routes line-level signals beneath the front passenger seat to an external discrete amplifier: either the Alpine-manufactured PA-200 (4x50W) or the ultra-desirable PA-300 (4x75W RMS continuous power).
Dolby Pro Logic II Surround Sound & The Center Channel Speaker
The defining technical triumph of the HU-850 is its integrated Dolby Pro Logic II Surround Sound Processor. The HU-850 front fascia features a dedicated selector button allowing the driver to toggle between three distinct sound modes:
- OFF (Standard Stereo): Classic two-channel left/right stereo staging.
- 3-CH (3-Channel Stereo): Directs mono vocal content and mid-range frequencies to the central dashboard speaker while widening the left and right door speaker separation.
- Dolby Surround Pro Logic II: Employs proprietary matrix phase-decoding algorithms to analyze two-channel stereo recordings, synthesizing a 5-channel acoustic soundstage with breathtaking spatial depth and acoustic envelopment.
To support this technology, HU-850 equipped vehicles feature a 70mm coaxial center channel speaker recessed into the upper dashboard grille, driven by a dedicated 25-watt internal amplifier channel built into the HU-850 chassis.
Accessing the Hidden Diagnostic & Equalizer Menus on HU-650 / HU-850
Both the HU-650 and HU-850 conceal powerful factory engineering menus that allow owners to recalibrate the acoustic equalization curves beyond the basic Bass and Treble knobs on the dashboard:
