Where Is the Transmission Fluid Dipstick on a 2006 Volvo XC90?

The location of the transmission fluid dipstick on a 2006 Volvo XC90 depends entirely on which engine is under the hood. If you have the 2.5T 5-cylinder turbo, there IS a physical yellow dipstick, but it is deeply hidden down on the lower front side of the transmission beneath the air intake snorkel and radiator hose. If you have the 4.4L Yamaha V8, there is NO dipstick at all—the transmission is a sealed unit checked via an overflow level plug beneath the vehicle at a calibrated temperature.

2.5T Turbo (AW55-50)

Yellow Dipstick Under Intake Snorkel

4.4L V8 (TF-80SC)

Sealed Unit / Bottom Overflow Plug Only

Critical Fluid Spec

JWS 3309 / Mobil 3309 (Do NOT use Mercon V)

Table of Contents

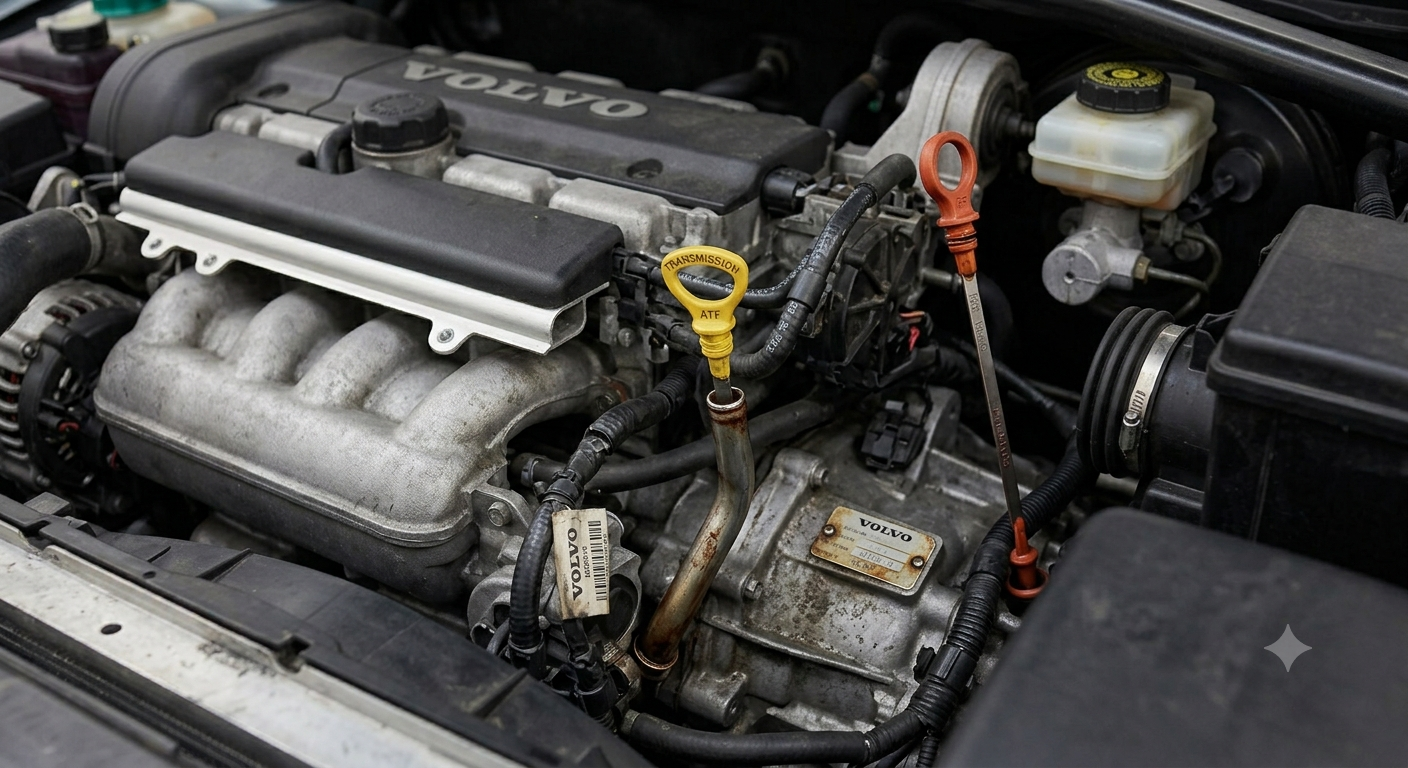

Exact Location on 2.5T 5-Cylinder Turbo Models (Aisin AW55-50SN)

Owners searching the top of the engine bay on a 2.5T XC90 rarely find the dipstick because it is deliberately tucked low to deter casual filling. Here is how to find and pull it:

Clear Engine Bay Access

Open the hood and locate the black plastic fresh air intake duct running from the front grille to the airbox. Pulling off this duct (held by two plastic clips) gives your arm clearance to reach down into the bay.

Look Beneath the Lower Radiator Hose

Shine a bright flashlight straight down between the lower radiator hose, battery tray, and transmission bellhousing. Roughly 12 to 14 inches below the top of the radiator, you will spot a small yellow plastic cap measuring barely 1 inch wide.

Disengage the Spring-Steel Locking Clip

The dipstick does not simply pull out. It has a spring-metal locking catch securing it to the filler tube. Press the small plastic release tab toward the tube with your thumb while pulling the dipstick upward.

🌡️
HOW TO READ THE 2.5T DIPSTICK ACCURATELY

The AW55 dipstick has two distinct reading zones: “COLD (20°C)” on one side and “HOT (80°C)” on the other. Transmission fluid expands dramatically as it warms. Always verify level with the engine idling in Park (P) on flat ground after a 15-minute drive when fluid reaches 80°C. If fluid is checked cold, it should only touch the bottom cold hash marks; overfilling causes aeration, foaming, and harsh 2-3 shift flared slips.

How to Check Fluid on the 2006 XC90 4.4L V8 (Aisin TF-80SC 6-Speed)

If your 2006 XC90 has the Yamaha 4.4L V8 (or if you have a European model with the 6-speed automatic), there is no dipstick tube anywhere in the engine compartment. Volvo adopted a sealed transmission design with an internal standpipe.

To inspect or level the fluid on the TF-80SC:

Elevate the XC90 on a 4-post lift or 4 level jack stands (the vehicle must be 100% horizontal).
Remove the underbody skid splash shield.
Locate the transmission oil pan drain plug. You will notice a nested two-piece plug: an outer large hex drain plug (24mm) and an inner Torx T40 (or 17mm) leveling plug.
Connect a diagnostic scanner (such as Volvo VIDA / DICE) to monitor Transmission Fluid Temperature (TFT) live. Run the engine until TFT reaches exactly 50°C to 55°C (122°F–131°F).
With the engine idling in Park, unscrew the center Torx T40 leveling plug. Fluid will drain out of the internal standpipe. If fluid drips out in a thin stream and then drops to a slow trickle, fluid level is perfect. If nothing drains out, add fluid via the top T55 fill plug until it overflows.

Interactive Transmission Diagnostic & Fluid Calculator

Select your 2006 XC90 engine and fluid condition to evaluate maintenance needs:

⚙️ 2006 XC90 Transmission Service Inspector

Identify exact fluid specification, capacity, and service protocol

Engine Configuration:

Current Fluid Color on White Towel:

Comparison: 2006 XC90 Transmission Specifications

Engine Variant	Transmission Code	Dipstick Existence	Fluid Type Specification	Service Interval
2.5T Turbo (5-Cyl)	Aisin AW55-50/51SN	Yes (Lower front engine bay)	JWS 3309 / Mobil ATF 3309	Every 50,000 miles
4.4L V8 (Yamaha)	Aisin TF-80SC (6-Speed)	No (Standpipe leveling plug)	Volvo 31256774 / Toyota WS	Every 60,000 miles

2.5T Turbo (AW55-50)
Has Dipstick

Dipstick:
Yellow cap under intake duct

Fluid Spec:
JWS 3309 (Mobil 3309)

4.4L V8 (TF-80SC)
No Dipstick

Check Method:
T40 overflow plug at 50°C

Fluid Spec:
Toyota WS / Aisin AW-1

Frequently Asked Questions About 2006 XC90 Transmission Fluid

Can I use standard Dexron III or Mercon V in my 2006 Volvo XC90?

No, absolutely not. Both the Aisin AW55-50 and TF-80SC transmissions have specialized linear solenoids and slip-controlled lockup clutches calibrated specifically for high-friction JWS 3309 or low-viscosity AW-1 fluids. Pouring standard Dexron III or Mercon V into these transmissions will cause severe transmission shudder, slipping gear engagements, and premature clutch pack destruction.

Why did Volvo claim transmission fluid is “filled for life”?

Volvo factory user manuals in 2006 stated automatic transmission fluid only required changing under “adverse conditions” such as continuous trailer towing. However, independent transmission specialists and real-world XC90 fleet data prove that fluid shearing occurs by 60,000 miles. Performing regular drain-and-fills every 50,000 miles prevents the notorious valve body sticking that causes 2-3 gear flare.

How do I add fluid to the 2.5T transmission?

Because there is no separate fill port on the AW55-50, fresh fluid is poured directly down the narrow dipstick tube using a long, slim-neck transmission funnel. Pour slowly in 0.5-quart increments to allow displaced air to escape without burping fluid over the hot exhaust.

Where is the transmission fill plug on the V8 TF-80SC?

On the 4.4L V8, the fill plug is located on top of the transmission casing, accessible from the engine bay. It is a large black Torx T55 bolt situated directly behind the air filter housing. Always unscrew the fill plug BEFORE removing the bottom leveling plug to ensure you can refill the unit.
