Where Is the Transmission Dipstick on a 2005 Volvo XC90?

Spent twenty minutes digging through your 2005 XC90’s engine bay looking for a transmission dipstick that might not even exist on your car? You’re not doing anything wrong — this is genuinely one of the more confusing checks on this generation, because the answer depends entirely on which engine is under the hood.

TL;DR

• The 2005 XC90 came with three engine options — 2.5T, T6, and V8 — and only two of them have an actual dipstick.
• 2.5T and T6 models have a small yellow-handled dipstick buried low at the front of the transmission, often hidden behind the lower radiator hose.
• V8 models have no dipstick at all — that transmission is sealed and checked through an underbody plug, which usually requires a lift.
• Fluid should be cherry red, not brown or sludgy, when you do locate and check it.
• If you’re not sure which engine you have, check your VIN or owner’s card before assuming your car is “missing” a part it was never built with.

The Short Answer: It Depends on Your Engine

Here’s the answer up front: on a 2005 Volvo XC90, whether you have a transmission dipstick — and where to find it — depends on which of the three available engines your car has.

The 2.5T (turbocharged five-cylinder) and T6 (twin-turbo inline-six) models use an Aisin-built automatic transmission that includes a small, low-mounted dipstick. The V8 4.4-liter models use a different, GM-sourced transmission that Volvo designed as sealed and low-maintenance, with no dipstick at all.

Quick Tip: Check your engine badge or VIN before spending an hour hunting for a dipstick. If you have the V8, you’re not missing anything — the car genuinely wasn’t built with one.

If You Have a 2.5T or T6: Finding the Dipstick

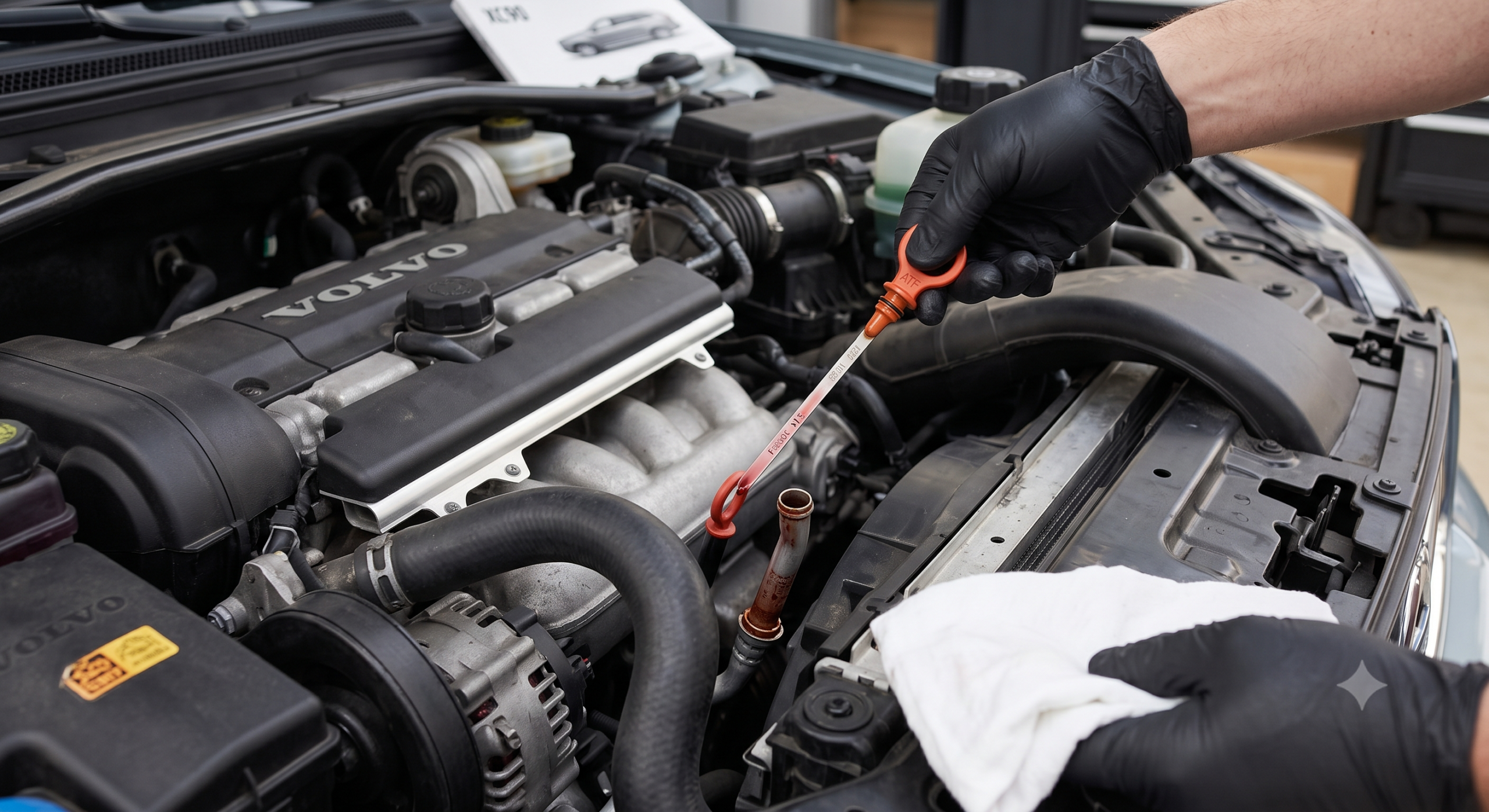

The dipstick on these models leads with a color, not a shape — it’s the small, round, yellow-handled stick tucked low at the front of the transmission, right where the engine and transmission housings meet.

Owners consistently describe this as one of the most awkwardly placed dipsticks on any Volvo. It sits low enough that you’ll likely need to gently push the lower radiator hose out of the way to see it, and on some builds it’s easier to spot by reaching up from underneath the car than by looking down from the engine bay.

Steps to check it:

1. Warm the engine to operating temperature by driving it for about 10–15 minutes — checking cold gives an inaccurate reading.
2. Park on level ground with the engine running and the transmission in Park.
3. Locate the yellow handle at the front-bottom of the transmission housing, moving the lower radiator hose aside if it’s blocking your view.
4. Pull the dipstick, wipe it clean, reinsert it fully, then pull it again to get an accurate reading.
5. Check the fluid color and level — it should sit between the two notches near the tip and appear cherry red.

Expert Insight: Don’t confuse the transmission dipstick with the nearby transmission vent hose, which also has a small cap on top. Several owners report grabbing the vent hose first before finding the actual dipstick further forward and lower on the transmission case.

If You Have a V8: There’s No Dipstick to Find

If your 2005 XC90 has the 4.4-liter V8, stop looking under the hood — this transmission was built without a dipstick, and that’s intentional, not a missing part.

Volvo designed this transmission to be effectively maintenance-free, checked instead through a fill/check plug on the underside of the transmission case. Reaching it requires the car to be raised on a lift, kept level, and — on most versions of this check — running with the fluid at a specific operating temperature.

Real-world scenario: Imagine you just did an oil change yourself and want to peek at the transmission fluid while you’re already under the hood. On the 2.5T or T6, that’s realistic. On the V8, it isn’t — you’d need the car in the air on a lift to reach the check plug safely, which is why most V8 owners leave this specific check to a shop with a hoist.

Quick Tip: If a parts diagram or online guide shows a dipstick for your V8 XC90, double check the model and engine listed — that diagram is likely for the 2.5T/T6 version of the same model year, not the V8.

Comparison: 2.5T/T6 vs. V8 Transmission Checks

Pros and Cons by Owner Type

The DIY Home Mechanic

• Pros: If you have the 2.5T or T6, this is a genuinely doable at-home check once you know where to look
• Cons: The V8’s design makes a proper fluid check nearly impossible without a lift, pushing you toward a shop regardless of skill level

The Used-XC90 Buyer

• Pros: Knowing which transmission your prospective purchase has tells you upfront how easy future maintenance checks will be
• Cons: A seller who doesn’t know their own engine type can lead you to check the wrong spot and assume a part is missing or broken

The High-Mileage Owner Chasing a Shifting Problem

• Pros: Confirming fluid color and level is a cheap first diagnostic step before assuming a costlier transmission repair
• Cons: Dark or burnt-smelling fluid on either transmission type usually means a full fluid service is overdue, not just a top-off

Alternative worth knowing: If checking fluid yourself sounds like more trouble than it’s worth on your specific engine, choose to have a shop perform the check during your next scheduled service — for the V8 especially, this avoids the lift requirement entirely.

Frequently Asked Questions

Why can’t I find a transmission dipstick on my 2005 XC90 V8? Because it doesn’t have one — Volvo built the V8’s transmission as a sealed unit, checked through an underbody plug rather than a dipstick.

What color should the transmission fluid be on a 2005 XC90? It should look cherry red or a similar reddish tint; brown, black, or sludgy fluid signals it’s overdue for service.

Is the transmission dipstick the same as the vent hose cap? No — several owners initially mistake the yellow-capped vent hose near the top of the transmission for the dipstick, when the actual dipstick is lower and further forward.

What transmission fluid does a 2005 XC90 need? Volvo specifies JWS 3309-spec automatic transmission fluid across these transmissions; always confirm against your owner’s manual before adding fluid.

Can I check V8 transmission fluid without a lift? It’s difficult and not generally recommended — the check plug’s location and the requirement to keep the car level make this one of the few fluid checks better left to a shop.

Key Takeaways

• Whether your 2005 XC90 has a transmission dipstick depends entirely on the engine: 2.5T and T6 have one, V8 does not.
• The 2.5T/T6 dipstick is yellow-handled and mounted low at the front of the transmission, often obscured by the lower radiator hose.
• V8 models require a professional check through an underbody plug, typically on a lift.
• Fluid should read cherry red; dark or burnt fluid is a sign of overdue service.
• All three engines use JWS 3309-spec ATF, so fluid type isn’t the variable — access method is.

Your Next Step

If you’ve confirmed your engine type and still can’t locate or access the check point safely, it’s worth booking a quick fluid check at a shop — on this generation, misidentifying the wrong dipstick or vent cap is a common way owners accidentally add fluid to the wrong opening.
