Where’s the Battery on a Volvo XC90?
Pop the hood on your XC90 looking for the battery, and you’ll come up empty — Volvo tucked it somewhere most drivers never think to check. Here’s exactly where it is and why it’s not where you’d expect.
TL;DR
- The 12V battery lives in the trunk/cargo area, under the floor panel, not under the hood.
- Both generations (2003–2014 and 2015–present) keep the battery in the same rear location.
- There are jump-start posts under the hood even though the actual battery is in back — you don’t need to dig through the trunk to jump it.
- Some trims add a second, smaller support battery under the hood for Start/Stop functionality.
- Volvo recommends a professional shop for replacement, since window pinch-protection needs resetting afterward.
The Quick Answer

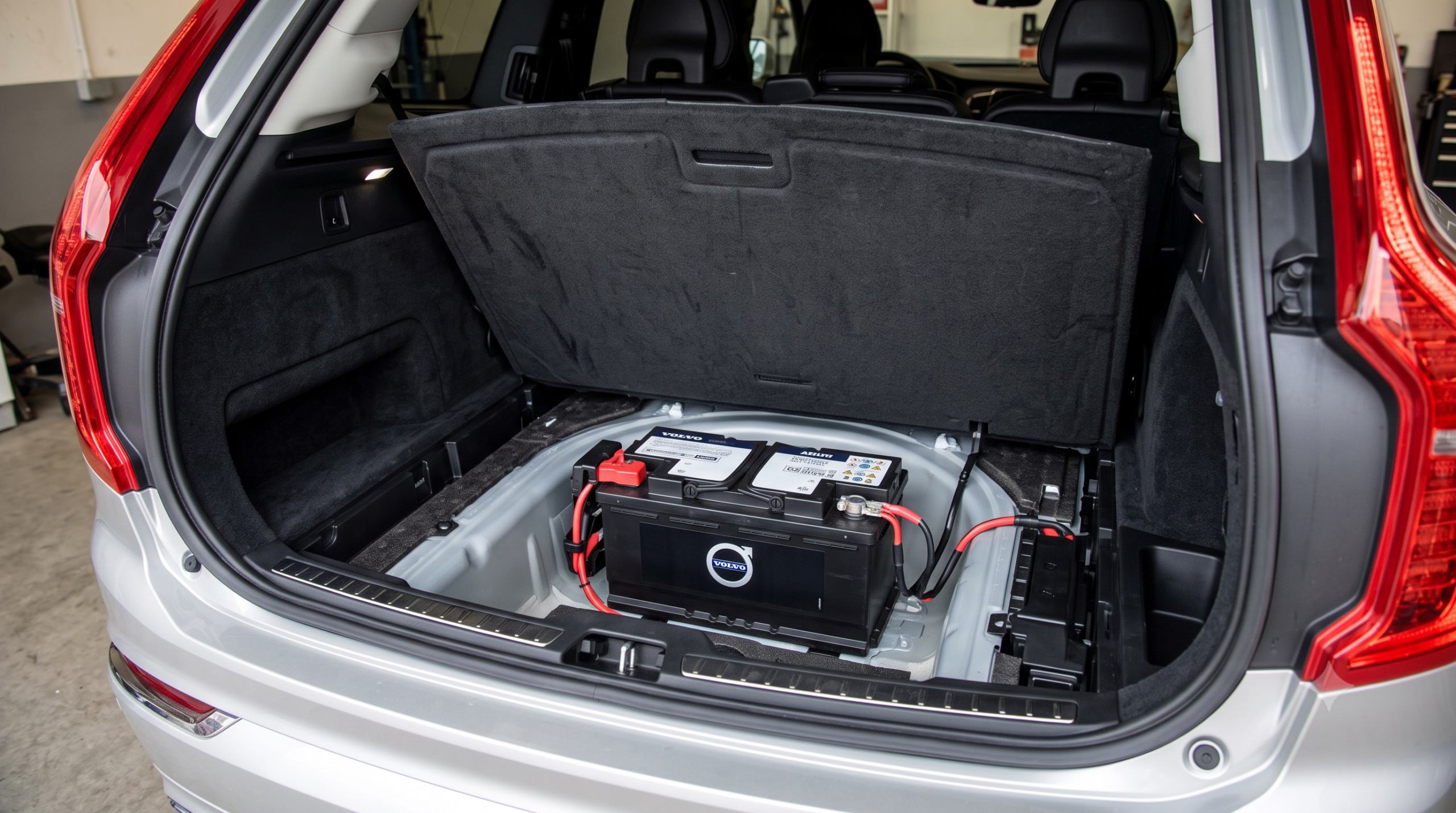

The Volvo XC90’s 12V battery is located in the trunk, underneath the cargo floor panel, on the left side — not in the engine bay like most vehicles. To jump-start the car, you can still use the dedicated positive and negative terminals located under the hood, which connect through to the actual battery in the back.
Why It’s Not Under the Hood
This catches almost every new XC90 owner off guard at least once.
Quick Tip: Check under the hood first if you’re troubleshooting — you’ll see jump-start posts there, but that’s not the battery itself, just a connection point to it.
Volvo places the starter battery in the cargo area on the XC90, a design choice that frees up engine bay space but means routine maintenance access runs through the trunk instead.
Pull quote: The jump-start posts under the hood aren’t the battery — they’re just its remote connection point.
How to Find It
Here’s exactly where to look, step by step.
- Open the trunk/cargo area at the rear of the vehicle.
- Lift the trunk floor panel — the main cargo floor liner.
- Look on the left side of the trunk, behind a smaller access panel.
- Remove the side panels covering the battery compartment (the second panel typically requires basic tools).
- The 12V battery sits inside, usually secured with a retaining strap.
Real-world scenario: Your XC90 won’t start on a cold morning, and you assume you need to pop the hood and start troubleshooting there. Instead, the fastest path is using the under-hood jump-start terminals — no need to unpack your trunk in freezing weather just to attempt a jump.
Jump-Starting Without Digging Through the Trunk
Expert Insight: When connecting an external starter battery or charger, use the car’s dedicated charging points in the engine compartment — the actual battery terminals in the cargo area aren’t meant to be used for this.
- Open the hood and locate the jump-start posts in the front corner of the engine bay.
- Connect jumper cables to these posts just as you would with a traditional under-hood battery.
- Follow standard jump-start safety procedure — positive first, negative last, to a grounded metal point.
- Avoid fast-charging the battery directly, since Volvo notes this can cause damage; use a modern charger with controlled voltage if charging rather than jumping.
Does Your XC90 Have a Second Battery Too?
Some trims add complexity here worth knowing about.
Quick Tip: If your XC90 has Start/Stop technology, there may be a smaller support battery under the hood in addition to the main battery in the trunk — this backup battery stabilizes electronics during engine restarts, separate from the primary starter battery in back.
| Battery | Location | Purpose |
|---|---|---|
| Main 12V starter battery | Trunk/cargo area, under floor panel | Powers starting and main electrical systems |
| Support/backup battery (Start/Stop-equipped trims) | Under the hood | Stabilizes electronics during stop-start engine cycling |
Comparing Generations
| Generation | Years | Battery Location |
|---|---|---|
| First-gen | 2003–2014 | Trunk/cargo area |
| Second-gen | 2015–present | Trunk/cargo area, under floor panel |
Both generations keep this same rear-mounted design, so if you’re moving from an older XC90 to a newer one, the location logic carries over.
Pros & Cons of the Trunk Location
The DIY-inclined owner
- Pros: Once you know where to look, accessing it is straightforward
- Cons: Requires removing floor and side panels, and some tools for full access, rather than a quick hood-pop
The owner who’d rather not do it themselves
- Pros: Volvo specifically recommends an authorized workshop for replacement, and pinch-protection resets are handled correctly
- Cons: Costs more than a simple DIY swap
The owner troubleshooting a no-start situation
- Pros: Under-hood jump posts mean you don’t need trunk access just to get the car running
- Cons: If the battery itself needs replacing rather than jumping, you’re back to trunk access eventually
Choose to jump-start via the hood posts if you just need to get moving — it’s faster and doesn’t require touching the trunk. Choose a full battery replacement through a Volvo workshop instead if the battery is actually failing, since window pinch-protection needs resetting afterward.
FAQ
Why isn’t the XC90’s battery under the hood like most cars? Volvo’s design places the starter battery in the cargo area on this model, freeing up engine bay space — the jump-start posts under the hood are just a connection point, not the battery itself.
Can I jump-start my XC90 without opening the trunk? Yes — use the dedicated jump-start posts under the hood, which connect through to the actual battery in the cargo area.
Do I need to reset anything after replacing the battery? Yes — if the 12V battery is disconnected, the window pinch-protection function needs to be reset afterward for it to work correctly.
How long does the XC90’s battery typically last? Most batteries last around three to five years, though this varies with driving habits, climate, and how often the vehicle is driven.
Can I replace the battery myself, or should I go to a shop? Volvo recommends entrusting battery replacement to an authorized workshop, partly because of the pinch-protection reset requirement, though experienced DIYers can often handle it with the right tools.
Key Takeaways
- The XC90’s 12V battery is in the trunk, under the floor panel — not under the hood.
- Jump-start posts under the hood let you boost the car without opening the trunk.
- Some trims have a second support battery under the hood for Start/Stop functionality.
- Both generations (2003–2014 and 2015+) use this same rear-mounted layout.
- Professional replacement is Volvo’s recommendation, mainly due to the pinch-protection reset step.
Next Step
If you’re dealing with a no-start situation right now, check under the hood for the jump-start posts first — it’s the fastest path to getting back on the road without touching the trunk at all.
